CURT 56513 Vehicle-Side Custom 5-Wire Trailer Wiring Harness, Fits Select Toyota Tacoma, Hilux, T-100 Pickup
A CURT custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle-to-trailer wiring. Most vehicles do not come ready to tow. Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector. This is where CURT's custom wiring harnesses come into play. Custom wiring harnesses plug into your vehicle's electrical system using original equipment (OEM) connectors. Our custom wiring harnesses use two or more OEM connectors to plug in at the taillight assembly and provide a standard trailer socket to allow a trailer to be plugged into your vehicle's power system. This harness provides a 5-way flat connector socket and comes with a circuit-protected converter. It is designed to be a custom wiring harness for certain years of the Toyota T-100 pickup or Toyota Tacoma (including X-Runner and Pre-Runner) (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). CURT custom wiring harnesses are long-lasting and quick to install. They come with dust covers to keep your connector clean when not in use and feature a one-year limited warranty to give you peace of mind.

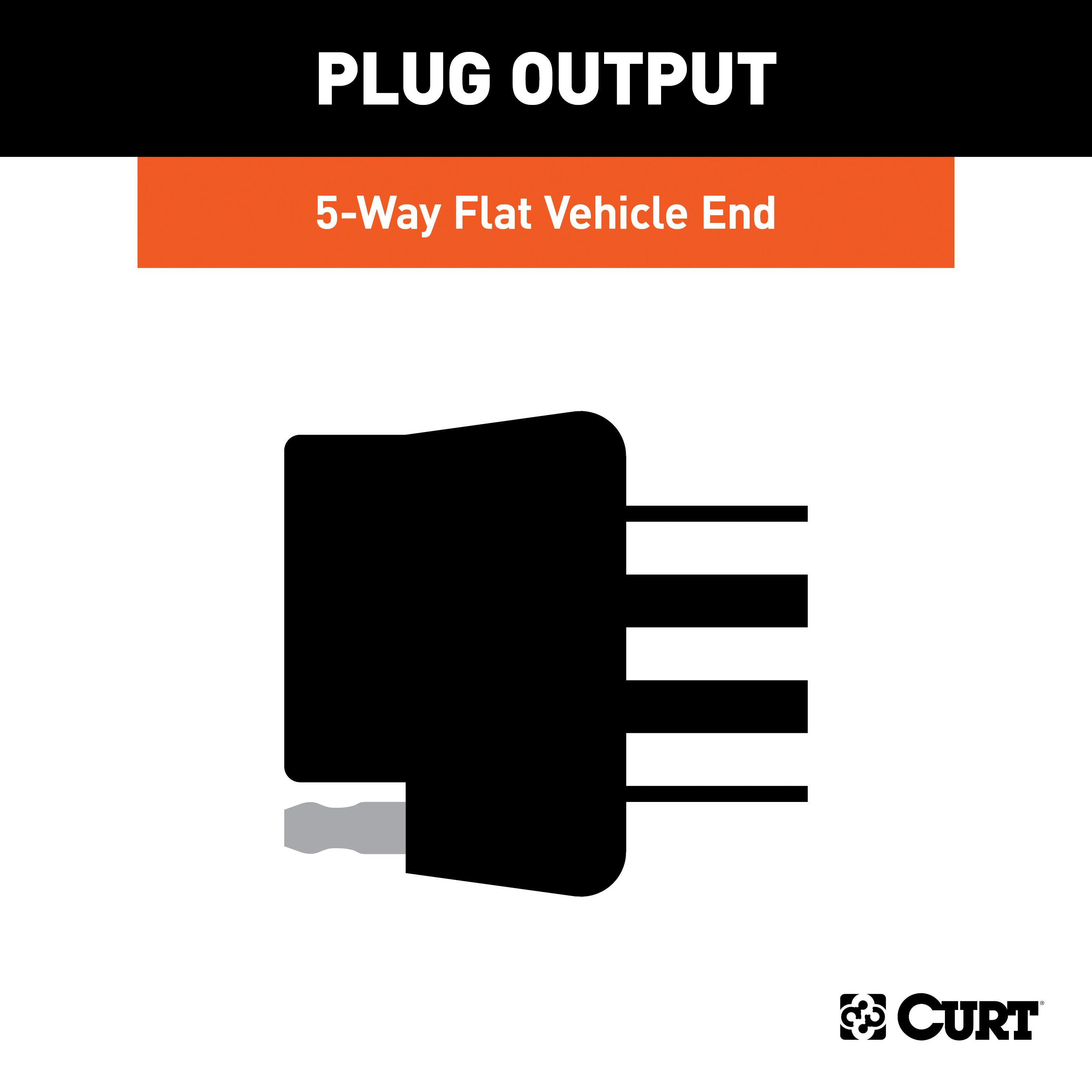

- Plugs into vehicle tail light assembly to provide a 5-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 5-way flat connects tail lights, brake lights, turn signals and reverse lights
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
- Ideal for trailers with surge brakes, common with boat trailers
Information:
Ideal for trailers with surge brakes, common with boat trailers
Application Summary:
| Year |
Make/Model |
| 2008 |
Toyota Hilux |
| 2010-2012 |
Toyota Hilux |
| 1993-1998 |
Toyota T100 |
| 2005-2015 |
Toyota Tacoma |
| Attributes |
| ASIN |
B007EA6WBA |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Class ID |
11, 11 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Country of Origin (Primary) |
MX |
| Electrical System Type |
3W, 3W |
| Finish |
N/A |
| Finish - XA |
N/A, N/A |
| Harmonized Tariff Code (Schedule B) |
8537109170 |
| Hazardous Material Code |
N |
| Install Time |
10 Minutes |
| Item Class - XA |
CME, CME |
| Item Height - XA |
0.000, 0.000 |
| Item Length - XA |
0.000, 0.000 |
| Item Width - XA |
0.000, 0.000 |
| Life Cycle Status Code |
Available to Order |
| Long Description |
5-Flat Output T-Connector |
| Master Case Height Inches - XA |
10.750, 10.750 |
| Master Case ITF14 - XA |
20612314565133, 20612314565133 |
| Master Case Length Inches - XA |
18.500, 18.500 |
| Master Case Qty - XA |
12, 12 |
| Master Case Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Master Case Weight Lbs - XA |
11.920, 11.920 |
| Master Case Width Inches - XA |
8.500, 8.500 |
| Material - XA |
Blank, Blank |
| Mount Type Description - XA |
Blank, Blank |
| NAFTA Preference Criterion Code |
B |
| Output Type |
5-Way Flat, 5-Way Flat |
| Pallet Cases Per - XA |
32, 32 |
| Pallet Cases Per Layer - XA |
8, 8 |
| Pallet Layer of Cases - XA |
4, 4 |
| Pallet Qty - XA |
12.000, 12.000 |
| Pallet Total Height Inches - XA |
0.000, 47.500 |
| Pallet Total Weight Per - XA |
0.000, 411.440 |
| Parcel Allowed - XA |
Yes, Yes |
| Price Code - XA |
E22, E22 |
| Product Weight - XA |
0.000, 0.000 |
| Rate Class - XA |
70.0, 125.0 |
| Retail Height - XA |
3.000, 9.000 |
| Retail Length - XA |
9.000, 3.000 |
| Retail Width - XA |
4.000, 4.000 |
| Sales Family Code - XA |
ELECT, ELECT |
| Sales Family Description - XA |
ELECTRICAL COMPONENTS, ELECTRICAL COMPONENTS |
| Sales Group Description - XA |
TCONN, TCONN |
| SDR Required Flag |
N |
| Shipping Weight - XA |
0.910, 1.000 |
| Side Application Type Description - XA |
Blank, Blank |
| T-Connector Location |
T3,T5, T3,T5 |
| Tariff 301 - XA |
No, No |
| Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Type |
3 Pole |
| Warranty |
One-Year Limited Warranty, One-Year Limited Warranty |
| Warranty Time |
1 |
| GTIN |
00612314565139 |
